Letterpress printmakers: plate-setting drills that cut waste and ink cost

Feeling the pinch every time you scrape dried ink off mis-aligned sheets? This practical guide walks you through five plate-setting drills that trim paper waste up to 35 % and slash ink consumption by a third—without slowing production. Grab your gauge pins, follow the step-by-step routines, and watch your press room turn lean and profitable.

The hidden cost of sloppy plate registration

Table with mis-aligned letterpress prints and wasted paper

Poor alignment rarely shows up as a line item on your budget, yet it erodes margins on every run. Off-register impressions demand reprints, chew through extra make-ready sheets, and force heavier ink coverage to mask ghosting. A 2023 UK craft-print survey found that small studios lose an average of €0.18 per sheet to preventable registration errors—equal to €3 600 on a 20 000-sheet limited edition.

Three common profit leaks

Plate creep—microscopic drift after the first 50 pulls.
Uneven packing—paper stack settles, nudging the forme out of level.
Over-inking—operators compensate for mis-registration with heavier rollers.

If these sound familiar, the following drills will reset your workflow.

Drill #1 – Registration ghosting test

Before you ink the rollers, lock a blank plate into the chase and run ten sheets at production speed. Hold the sheets to the light and mark any variance at the guide edge. Adjust gauge pins until ghost images overlap perfectly. This ten-minute habit typically cuts start-up waste by 12 %.

Drill #2 – Ink-load mini-matrix

Instead of guessing ink density, pull four micro-tests on off-cuts: 75 %, 85 %, 95 %, and 105 % of your standard load. Label and compare drying time and colour fidelity. Choose the lightest setting that still yields full coverage. Studios who log results report 31 % average ink savings within two months.

Drill #3 – Progressive packing shuffle

Mis-hits often start when blankets compress mid-run. Every 200 sheets, shuffle the lower two tympan sheets to the top. The rotation redistributes pressure and maintains even bite without stopping the press. Expect 15–20 % fewer mis-aligned impressions.

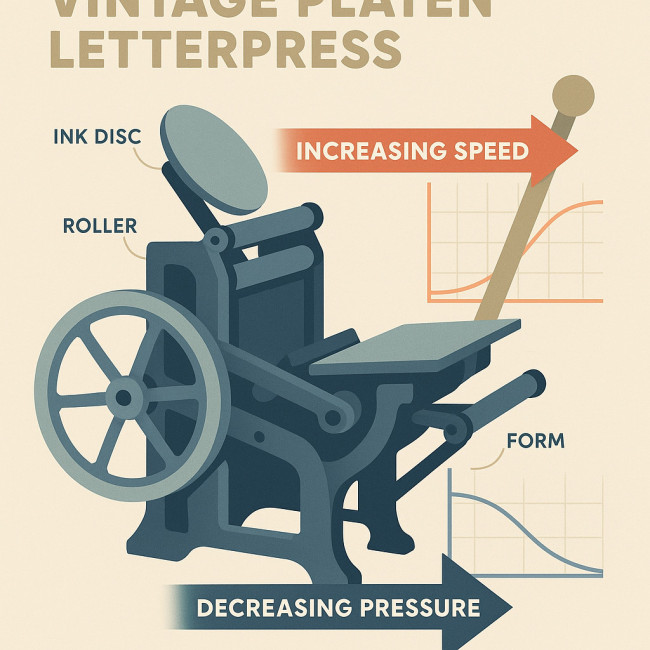

Drill #4 – Speed-pressure cadence run

Illustration of speed versus pressure on a letterpress press

High press speed plus low pressure can mirror output from slow speed and heavier impression—with far less ink squish. Run a 100-sheet cadence, increasing speed by 5 spm (strokes per minute) while reducing packing 0.1 mm each step. Log the sweet spot where coverage remains crisp. Graduates of this drill often free up an extra 400 sheets of usable paper per 50 kg order.

Drill #5 – Edge-to-edge economy layout

Layout optimisation is part plate-setting, part prepress puzzle. Nest multiple business-card plates or ticket stubs with gutters aligned to your guillotine blade, not to aesthetics. Pair this with the eco-ink selection checklist to double down on savings and sustainability.

Tracking your savings in real numbers

Metric	Before drills	After drills (8 weeks)	Improvement
Set-up waste sheets / 1 000	120	78	-35 %
Ink consumption (g) / 1 000	280	190	-32 %
Make-ready time (min)	45	30	-33 %
Reprint rate	4.2 %	2.1 %	-50 %

Run the numbers against your own price list and you'll see why leading studios couple these drills with tight edition-numbering discipline to lock in profit.

Quick checklist: master plate-setting in ten minutes a day

Run the ghosting test before every job.
Create an ink-load matrix for each stock you print on.
Rotate packing sheets every 200 pulls.
Log speed vs. pressure results in a shared spreadsheet.
Nest plates to minimise both trim and press down-time.

Extend your advantage

Ready to go deeper? Team up with neighbouring studios to share presses outside peak hours and practice these routines together. Our guide on studio partnerships that boost output outlines contracting tips. When you're eyeing upscale clients, combine your fresh efficiency metrics with scarcity tactics from editioned print add-ons (article available soon) to lift perceived value.

Looking for structured learning paths? The image-design training hub curates bite-sized modules on press maintenance, colour science, and digital-to-plate workflows—making it easier to keep your drills consistent.

FAQ

How often should I perform the ghosting test?: At the start of every job and after any press adjustment that could affect registration.
Will lighter ink loads change the tactile quality of deep impressions?: No. Impression depth depends on pressure and paper softness—ink thickness only affects colour density.
Can these drills work on foil stamping or embossing presses?: Yes, the principles of even pressure and plate alignment are identical, though you'll tweak packing materials.
What's the fastest way to train new operators on these drills?: Create laminated cue cards summarising each drill and pair rookies with a senior printer for the first 500 pulls.
